ModernGlide Ltd — PanelHush Series · Product Brochure
PanelHush PET
Beam Baffles
High-performance acoustic ceiling baffles manufactured from 75% post-consumer recycled PET fibres. NRC up to 1.00. Fully recyclable. Available in an extensive colour range for architecturally demanding interiors.
NRC Rating
Up to 1.00
Recycled Content
75% PET Fibres
Fire Rating
Class B / Euroclass B
Recyclability
100% Recyclable
movableacousticwalls.co.uk · 01932 918338 · sales@modernglide.co.uk · Issue 2025
Product Description
PanelHush PET Beam Baffles are an innovative and sustainable ceiling acoustic solution engineered for high-performance sound absorption in architecturally demanding interiors. Manufactured using 75% post-consumer recycled PET fibres — the same material found in plastic bottles — these eco-friendly acoustic baffles are fully recyclable and designed to reduce noise, improve speech intelligibility, and enhance interior aesthetics simultaneously.
The beam profile configuration suspends baffles horizontally from the ceiling structure, maximising exposed surface area for superior acoustic performance while creating a distinctive architectural ceiling feature. Unlike wall panels, baffles absorb sound on both faces and edges — making them significantly more efficient per unit area than equivalent wall-mounted treatments.
PanelHush PET Beam Baffles are specified by architects, interior designers and acoustic consultants across offices, schools, universities, restaurants, leisure centres and public buildings — wherever acoustic comfort and design quality matter equally. ModernGlide supplies and installs PanelHush PET Baffles nationwide across the UK.
NRC up to 1.00
High acoustic performance
75% Recycled PET
Sustainable manufacture
Class B Fire Rating
Euroclass B certified
100% Recyclable
End-of-life circular
Key Technical Data Summary
NRC Rating (12mm)
NRC 0.95
NRC Rating (25mm)
NRC 1.00+
Standard Thickness
12mm / 25mm
Width Range
100mm – 300mm
Length Range
600mm – 2400mm
Fire Rating
Class B / Euroclass B
Recycled Content
75% Post-Consumer PET
Recyclability
100% End-of-Life
Full Technical Specification
| Product Name | PanelHush PET Beam Baffle |
| Material | 75% post-consumer recycled PET fibres |
| Standard Thickness | 12 mm and 25 mm |
| Standard Widths | 100 mm to 300 mm |
| Standard Lengths | 600 mm to 2400 mm |
| NRC Rating (12mm) | NRC 0.95 |
| NRC Rating (25mm) | NRC 1.00+ |
| Fire Rating | Class B / Euroclass B |
| Recyclability | 100% recyclable at end of life |
| Recycled Content | 75% post-consumer recycled PET |
| Profile | Beam (horizontal) configuration |
| Suspension System | Standard suspension brackets and wires |
| Colour Range | Extensive standard palette + custom RAL |
| Bespoke Options | Custom dimensions, colours and layouts |
| Sustainability Certs | BREEAM / LEED / WELL compatible |
| Origin | UK nationwide supply and installation |
Acoustic Performance
PanelHush PET Beam Baffles achieve NRC ratings up to 1.00, delivering exceptional sound absorption across a broad frequency range. Performance is maximised by the beam profile configuration — absorbing sound on both faces and edges simultaneously.
| Specification | NRC Rating | Frequency Range | Recommended Use |
|---|---|---|---|
| 12mm Baffle | NRC 0.95 | Broad frequency range | Excellent absorption across mid and high frequencies — ideal for office and educational environments |
| 25mm Baffle | NRC 1.00+ | Extended low frequency | Superior performance including low-frequency absorption — specified for critical acoustic environments |
How Baffles Work: Acoustic ceiling baffles are suspended panels hung vertically or horizontally from the ceiling structure to absorb sound energy and reduce reverberation. Unlike wall panels, baffles work in three dimensions — absorbing sound on both faces and edges — making them 2–6 times more effective per unit area than equivalent wall-mounted treatments. The PanelHush PET Beam Baffle uses a horizontal beam-profile configuration that adds structural visual interest while maximising exposed surface area for superior acoustic performance.
Performance Benefits
PanelHush PET Beam Baffles deliver measurable acoustic improvement alongside architectural design quality — addressing both performance and aesthetic requirements in a single product.
Reduced Reverberation
Dramatically cuts reverberation time (RT60) in large, hard-surfaced spaces. Conversations become clearer, background noise recedes, and the acoustic environment becomes noticeably more comfortable.
Improved Speech Intelligibility
High NRC ratings across mid and high frequencies ensure speech is clearly understood — critical for classrooms, conference rooms, and open offices where communication is key.
Design Flexibility
The beam profile creates a bold architectural ceiling feature. Available in a wide range of colours, dimensions, and layouts to suit any design intent — from subtle neutrals to dramatic statements.
Eco-Friendly and Sustainable
75% post-consumer recycled PET content, fully recyclable at end of life. Supports BREEAM, LEED, and WELL Building Standard credits. The responsible choice for sustainable interior specification.
Noise Fatigue Reduction
Prolonged exposure to reverberant noise causes fatigue and stress. PET Beam Baffles create calmer, more productive environments — proven to improve wellbeing and concentration.
Versatile Applications
Equally at home in offices, schools, universities, restaurants, leisure centres, and public buildings. One product family addresses the acoustic needs of virtually any commercial interior.

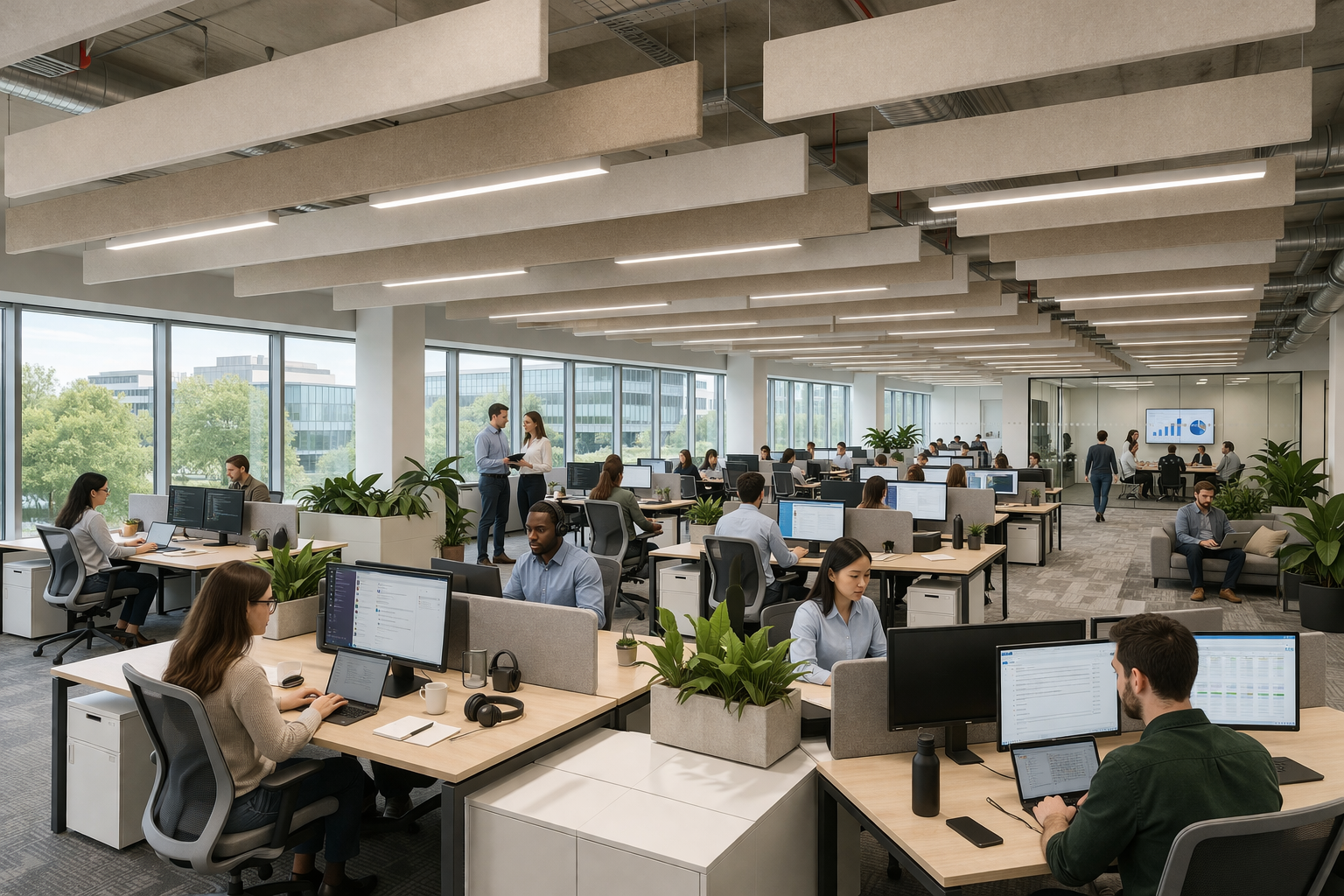

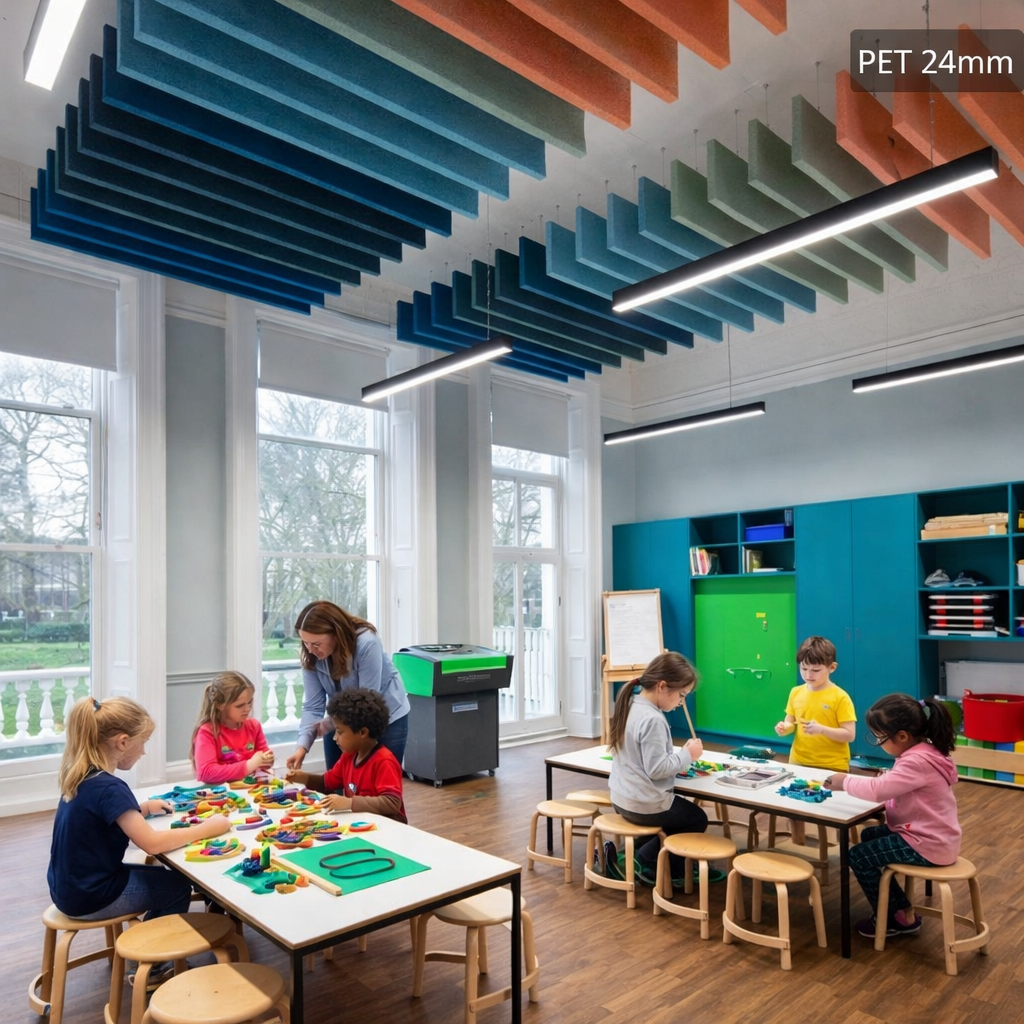

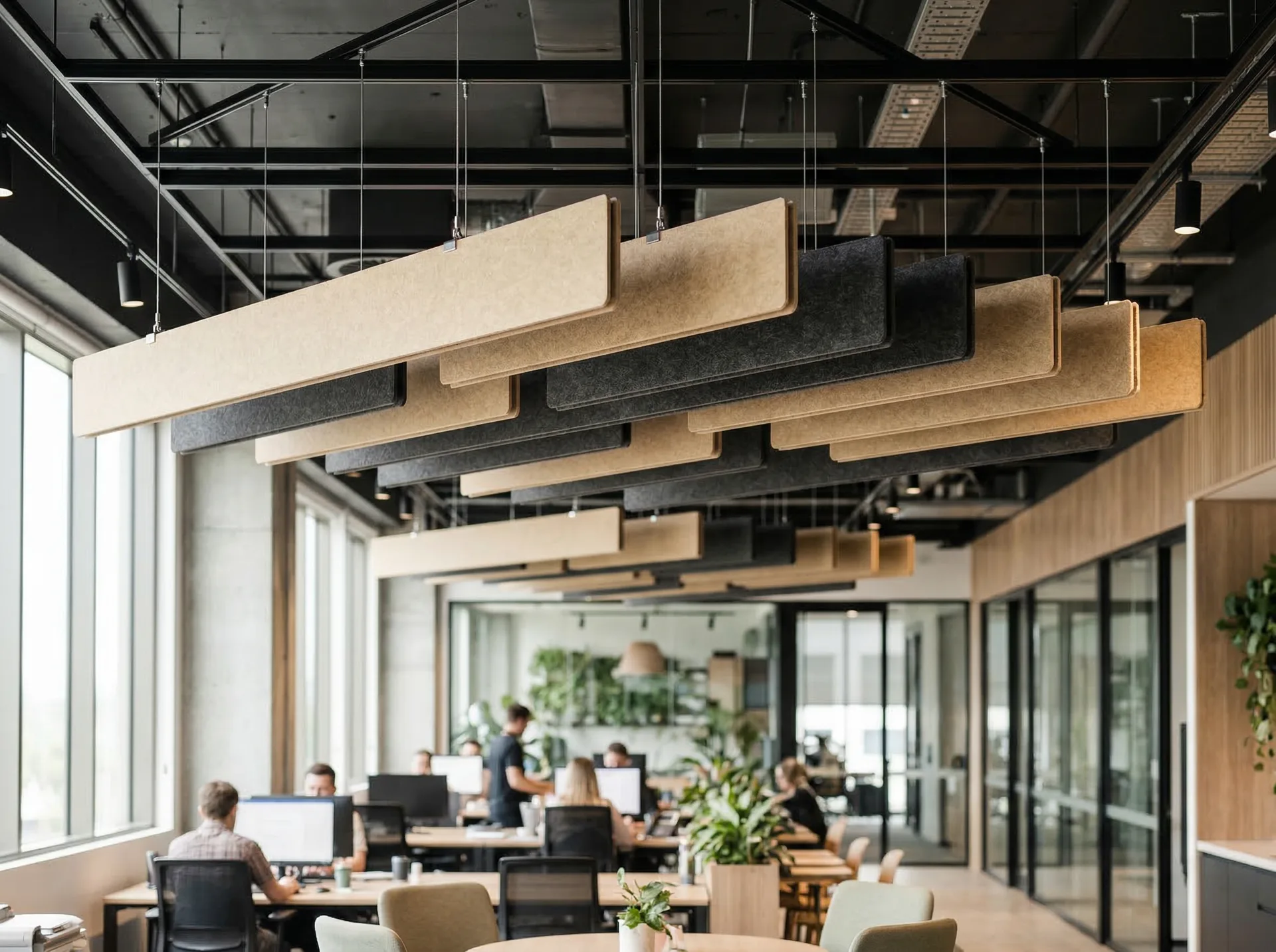

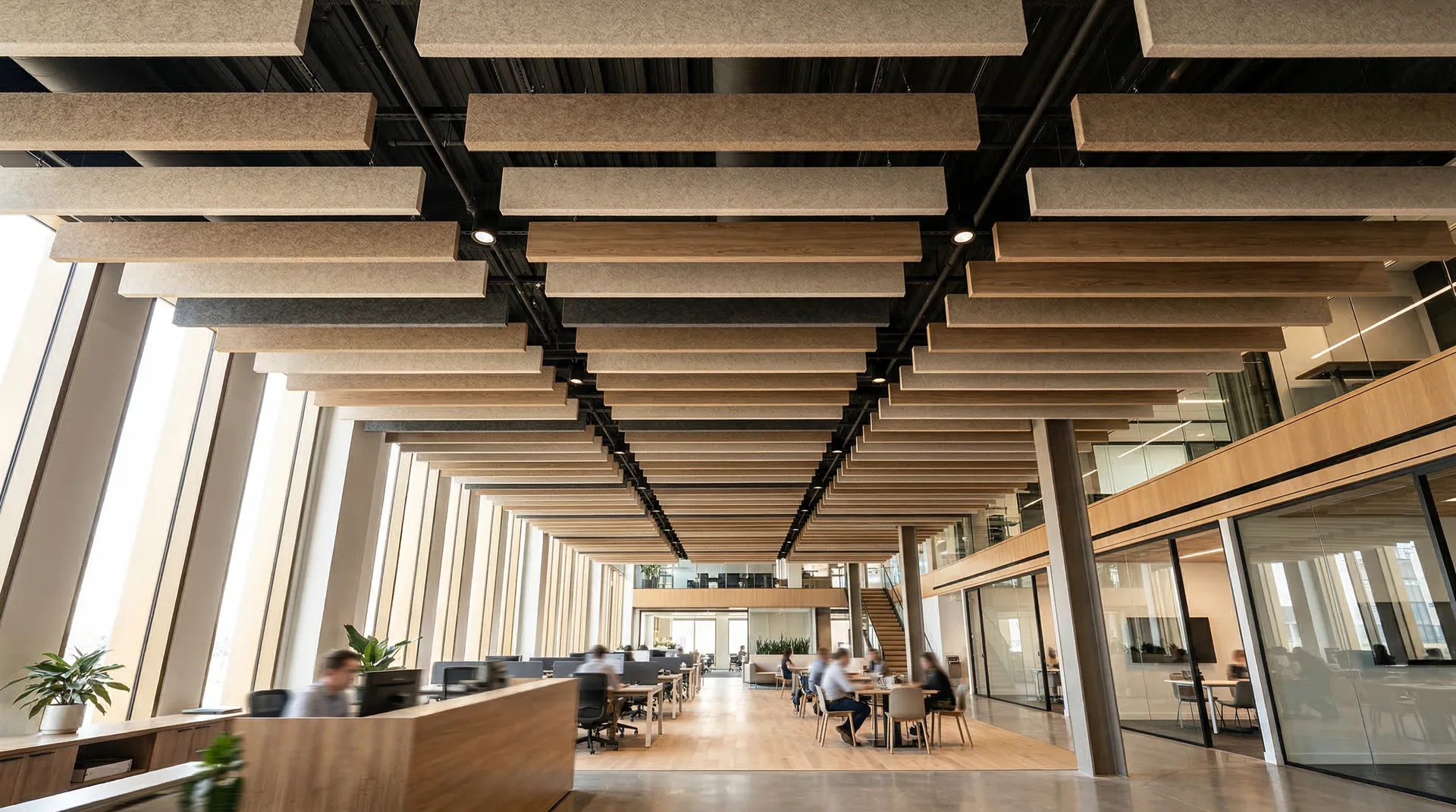

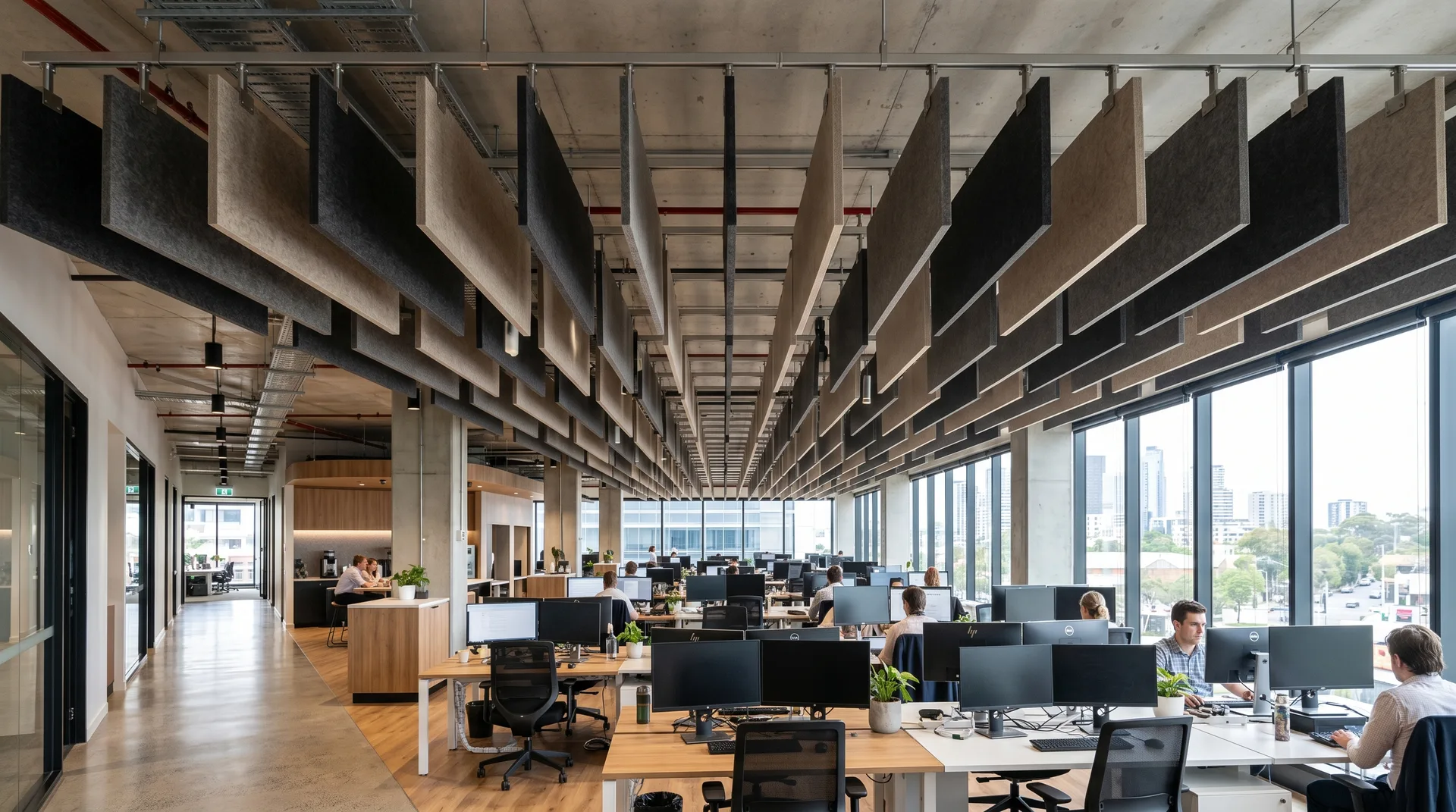

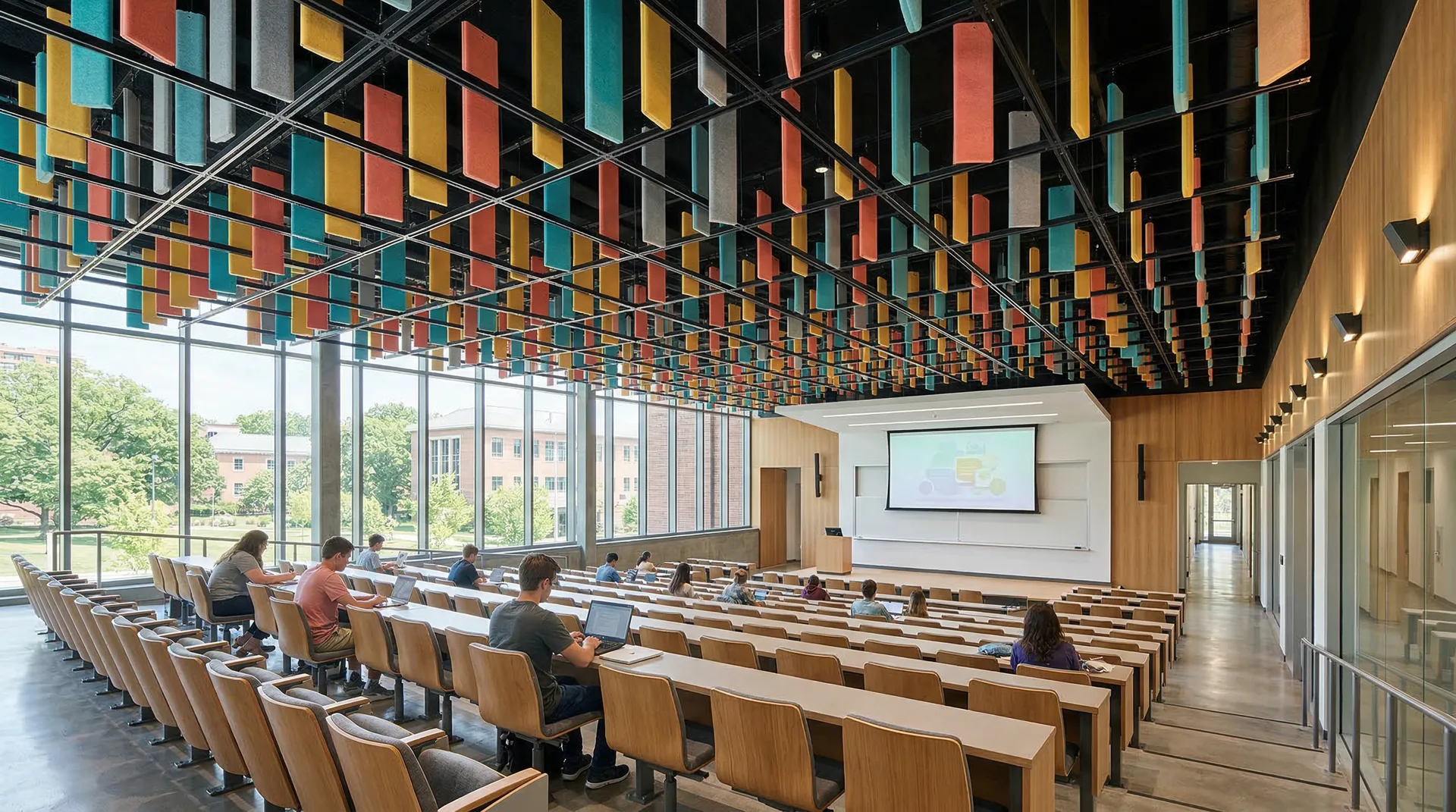

PanelHush PET Beam Baffle Gallery
PanelHush PET Beam Baffles installed across a range of commercial, educational and hospitality projects throughout the UK.
PanelHush PET Beam Baffle installations across offices, education and hospitality environments. All images show ModernGlide PanelHush PET acoustic baffle systems supplied and installed by ModernGlide Ltd.
Colour Range and Customisation
PanelHush PET Beam Baffles are available in an extensive range of standard colours — from warm neutrals and natural tones to bold, vibrant hues. Mix and match colours to create custom ceiling compositions that become a defining feature of your interior. Custom RAL and bespoke colour matching is available for projects requiring precise brand alignment or unique design intent.
Pearl
Sand
Stone
Slate
Charcoal
Steel Blue
Teal
Sage
Copper
Terracotta
+ Many more standard colours available. Custom RAL matching is available on request for projects requiring precise colour specification. Our design team works directly with architects and interior designers to achieve the specified result. Contact ModernGlide to request a colour sample pack.
Dimensions and Configuration Options
PanelHush PET Beam Baffles are available in a range of standard sizes and can be produced to bespoke dimensions to suit any project requirement.
Standard Dimensions
- Thickness: 12mm and 25mm
- Width: 100mm to 300mm
- Length: 600mm to 2400mm
- Custom sizes available on request
- Bespoke profiles to design intent
- Mixed sizes within one installation
Layout Options
- Parallel rows — uniform spacing
- Staggered pattern layouts
- Mixed colour compositions
- Varying length combinations
- Grouped cluster arrangements
- Custom bespoke layouts to design
Suspension Options
- Standard suspension wire system
- Adjustable drop height
- Compatible with all ceiling types
- Suitable for exposed soffits
- Suitable for suspended ceilings
- Suitable for structural steel frames
Typical Applications
PanelHush PET Beam Baffles are specified by architects and interior designers across a wide range of sectors — wherever acoustic comfort and design quality matter.
Open-Plan Offices and Co-working Spaces
Control noise in open-plan environments. PET Beam Baffles reduce reverberation and background noise fatigue — creating a more productive, comfortable working environment without the need for full acoustic enclosures.
Schools and Universities
Classrooms, lecture halls, libraries and sports halls all benefit from reduced reverberation. PET Baffles improve speech intelligibility — critical for effective teaching and learning environments.
Restaurants and Hospitality
Dining rooms, hotel lobbies and reception areas are transformed by acoustic baffles. Reduce noise levels during busy service periods — improving guest comfort and overall dining experience.
Public and Civic Buildings
Leisure centres, community halls, transport hubs and public spaces all benefit from targeted acoustic treatment. PET Baffles provide an effective, low-maintenance acoustic solution for high-traffic environments.
Healthcare Facilities
Waiting areas, corridors and treatment spaces require controlled acoustic environments. PET Baffles reduce noise levels and improve speech privacy — supporting patient wellbeing and staff concentration.
Conference Centres and Event Spaces
Divisible conference suites and event spaces require acoustic clarity for presentations and discussions. PET Baffles deliver the acoustic performance needed for professional event environments.
Sustainability and Environmental Credentials
PanelHush PET Beam Baffles are manufactured using 75% post-consumer recycled PET fibres — the same material found in plastic bottles. Each installation diverts significant quantities of plastic waste from landfill and reduces the embodied carbon of the project.
The panels are 100% recyclable at end of life, supporting circular economy principles. This makes them an ideal specification choice for projects targeting BREEAM Excellent, LEED Gold/Platinum, or WELL Building Standard certification.
Recycled Content
75% PET Fibres
End-of-Life
100% Recyclable
BREEAM
Credits Available
LEED
Credits Available
Environmental Credentials
- 75% post-consumer recycled PET fibre content
- Each installation diverts significant plastic waste from landfill
- 100% recyclable at end of product life
- Reduced embodied carbon versus virgin material alternatives
- Supports BREEAM Excellent, LEED Gold/Platinum credits
- Compatible with WELL Building Standard certification
- No VOC emissions — safe for occupied buildings
- Manufactured to ISO 14001 environmental management standards
Installation Notes
- Compatible with standard ceiling structures across all building types
- Simple suspension system using standard wires and brackets
- Lightweight panels — typically 2–4 kg per linear metre
- No specialist fixings or structural reinforcement required
- Can be installed into existing ceilings without major disruption
- Suitable for retrofit into occupied buildings
- Full installation guidance provided with every order
- UK nationwide supply and installation by ModernGlide
ModernGlide's installation team carries out a site survey as part of the pre-installation process to confirm ceiling structure suitability and agree baffle layout, spacing and drop height. Full installation guidance is provided with every order. Contact our technical team to discuss your specific project requirements.
Specifier Guidance
Acoustic Specification
- Specify baffle thickness based on target RT60 and frequency requirements
- 12mm baffles: suitable for most office and educational applications
- 25mm baffles: specified where low-frequency absorption is required
- Baffle spacing: typically 100–200mm between baffles for optimum performance
- Coverage area: typically 15–30% of ceiling area for significant RT60 reduction
- Acoustic calculation service available from ModernGlide technical team
- Custom layouts and colour compositions designed to client brief
- NBS specification clauses available on request
Key Specification Considerations
- Ceiling structural capacity and fixing points
- Desired drop height from ceiling soffit
- Spacing between baffles for target NRC
- Colour and layout composition to design intent
- Coordination with lighting and M&E services
- BREEAM / LEED credit requirements
- Custom dimensions for non-standard spaces
- Fire rating requirements for the building type
Available Documentation
- NBS specification clauses
- Acoustic performance data sheets
- Colour sample packs on request
- Bespoke layout design service
- Acoustic calculation service
- Installation guidance notes
- BREEAM / LEED credit documentation
- Sustainability data sheets
Explore the Full PanelHush Range
PanelHush PET Beam Baffles are part of the wider PanelHush acoustic systems range — covering ceiling baffles, suspended rafts, wall panels and sliding acoustic panels.
PanelHush PET Beam Baffles — Key Information
PanelHush PET Beam Baffles are acoustic ceiling baffles — also described as acoustic ceiling panels, suspended acoustic baffles, PET acoustic baffles, ceiling acoustic treatment, acoustic rafts, or sound absorbing ceiling panels. They are manufactured from 75% post-consumer recycled PET fibres and are fully recyclable at end of life. The beam profile configuration maximises exposed surface area for superior acoustic performance.
PanelHush PET Beam Baffles achieve NRC ratings of 0.95 (12mm) to 1.00+ (25mm), delivering exceptional sound absorption across a broad frequency range. They are suitable for offices, schools, universities, restaurants, leisure centres, healthcare facilities and public buildings — any commercial interior where acoustic comfort and design quality are both required.
PanelHush PET Baffles are supplied and installed by ModernGlide Ltd, UK specialists in movable acoustic walls, operable partitions and acoustic panel systems. ModernGlide provides nationwide supply and installation, NBS specification support, acoustic calculations, bespoke colour and layout design, and full project management from survey to handover. Contact ModernGlide for colour samples, acoustic calculations and a project quotation.
ModernGlide Ltd
Request a Sample Pack or Technical Quote
Contact our acoustic specialists to receive colour samples, acoustic calculations, NBS specification clauses and a full project quotation for PanelHush PET Beam Baffles.
PanelHush PET Beam Baffles — Product Brochure · ModernGlide Ltd · Issue 2025 · Subject to change without notice
75% Recycled PET · 100% Recyclable · NRC up to 1.00 · Class B Fire Rating
