MG400 — Sliding Wall & Pocket Door System
Transforming a Space with the MG400 Sliding Wall & Pocket Door System
Panels reaching 3,500 mm, clad in classic veneer — designed to vanish into the wall and reappear as a fully acoustic partition when needed.
3,500 mm
Panel height
Rw 43 dB
Acoustic rating
100%
Concealed when open
Project Overview
A seamless finish — both vertically and functionally. The MG400 showcases what is possible when acoustic performance and architectural elegance are engineered as one.

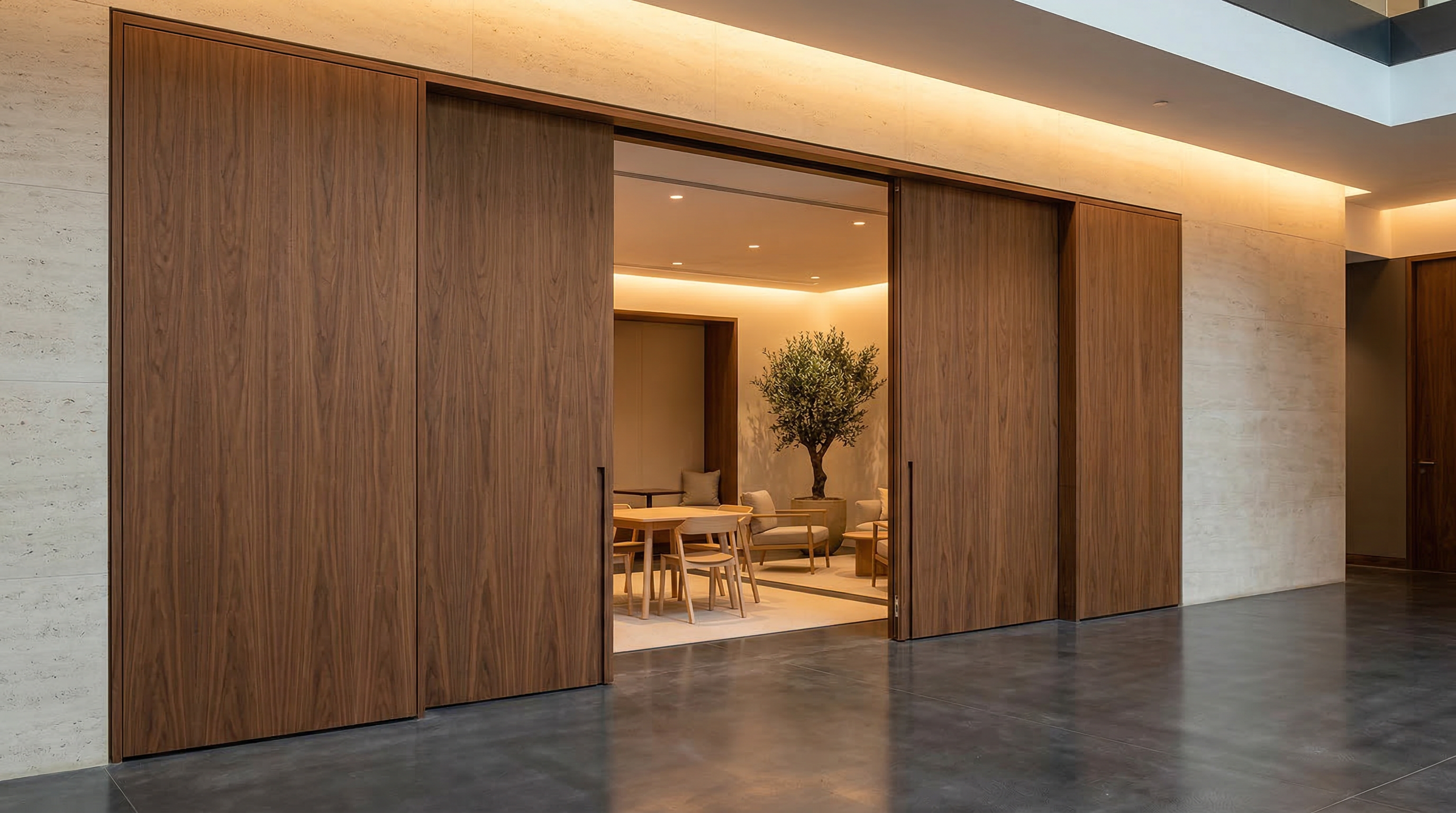

This installation showcases the MG400 system at its most refined — featuring panels that reach an impressive height of 3,500 mm. These panels are beautifully clad in a classic veneer finish, designed to blend seamlessly into any environment while providing excellent acoustic performance and a touch of high-end style.
The pocket door configuration is the defining detail of this project. Rather than stacking panels in a visible parked position, each panel slides entirely into a concealed wall cavity — completely hidden from view when the space is open. The result is an interior that reads as a single, uninterrupted room until the moment the partition is needed.
When deployed, the MG400 transforms that open space into two acoustically separated zones, with automatic seals engaging at the floor and perimeter gaskets compressing against the frame. The veneer finish continues across both the panels and the surrounding joinery, so the wall appears as a natural continuation of the room architecture rather than an afterthought.
Quick Specification
- System
- MG400
- Height
- 3,500 mm
- Acoustic
- Rw up to 43 dB
- Finish
- Classic Veneer
- Config
- Pocket Door
"The veneer finish continues across both panels and surrounding joinery — a completely unified interior."
System Highlights
Four Reasons the MG400
Redefines the Pocket Door
01
Invisible When Open
The defining characteristic of the MG400 pocket door configuration: panels slide entirely into a concealed wall cavity, leaving no visible hardware, track or panel face. The opening is completely unobstructed — the wall simply disappears.
02
3,500 mm Panel Height
Reaching an impressive 3,500 mm from floor to ceiling, these panels make a dramatic architectural statement. Full-height panels eliminate the visual interruption of a head rail, creating a seamless transition between spaces.
03
Classic Veneer Finish
Beautifully clad in a real wood veneer, each panel is designed to blend seamlessly with surrounding joinery — cabinetry, panelling and door linings can all be matched for a completely unified interior.
04
Acoustic Separation — Rw up to 43 dB
When deployed, the MG400 delivers meaningful acoustic separation with an Rw rating of up to 43 dB. Automatic drop seals engage at floor level, perimeter gaskets compress against the frame, and the result is genuine acoustic privacy.
Engineering Detail
How the Pocket Door Configuration Works
Unlike conventional sliding wall systems where panels park visibly at the side of an opening, the MG400 pocket door configuration routes each panel into a purpose-built cavity within the adjacent wall construction. When fully retracted, the panel is completely hidden — no face, no edge, no hardware is visible from either side.

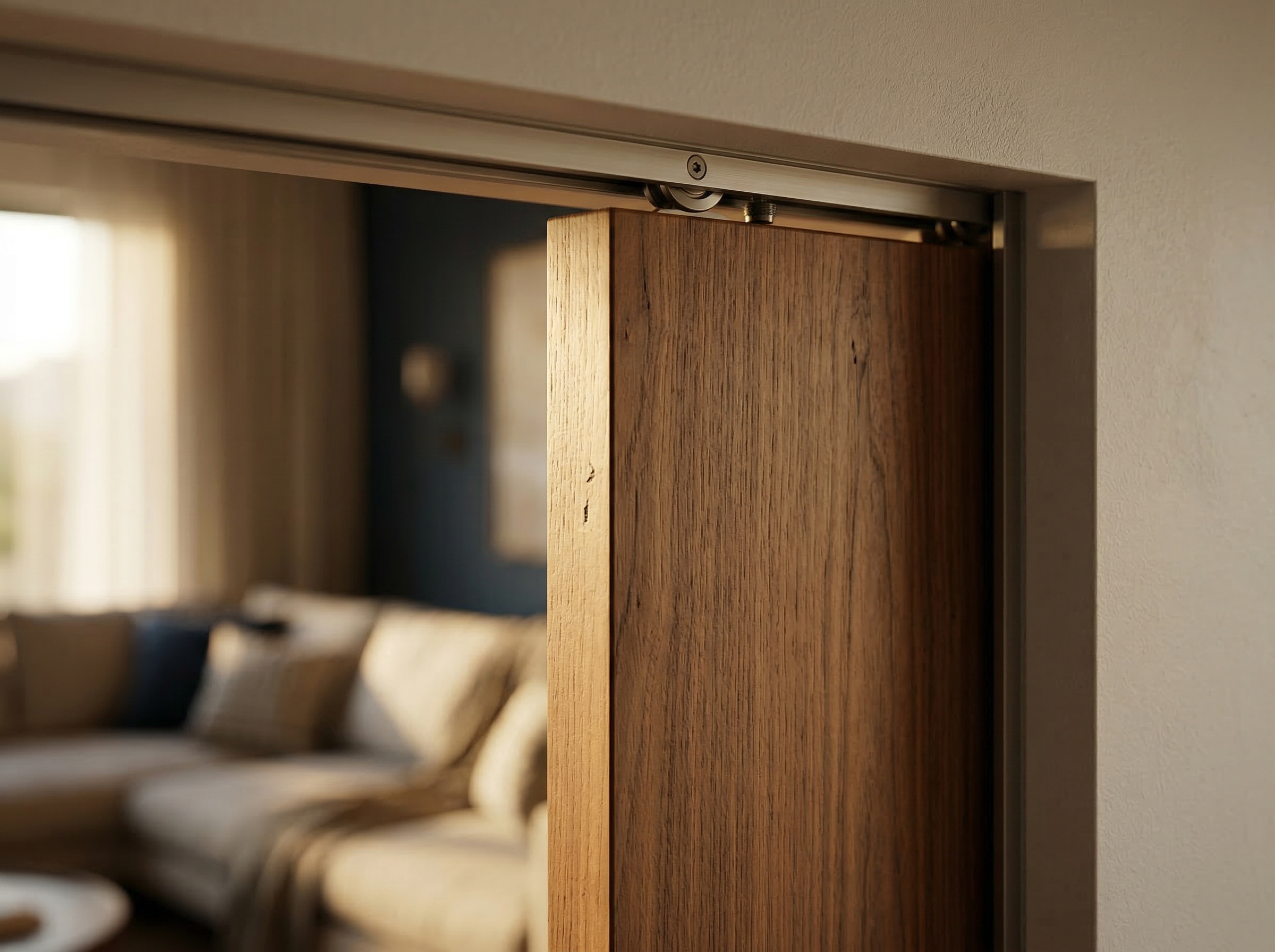

The top-hung track runs continuously through the opening and into the pocket cavity, supported at regular centres to carry panel weights of up to 200 kg per leaf. A soft- close mechanism decelerates the panel in the final 150 mm of travel, ensuring silent, controlled operation every time.
- Panels slide into concealed wall pocket — zero visual footprint when open
- Top-hung track carries panels up to 200 kg per leaf
- Soft-close mechanism for silent, controlled operation
- Automatic drop seals engage at floor level when panel is closed
- Perimeter gaskets compress against frame for acoustic integrity
- Veneer finish matched to surrounding joinery for seamless integration
Operation Sequence
Open Position
Panels fully retracted into wall pocket. Space is completely open. No visible hardware.
In Transit
Panels glide along top-hung track. Soft-close decelerates in final 150 mm.
Closed & Sealed
Drop seals engage. Perimeter gaskets compress. Rw up to 43 dB acoustic separation achieved.
Key Specification
Rw up to 43 dB
Acoustic separation when closed

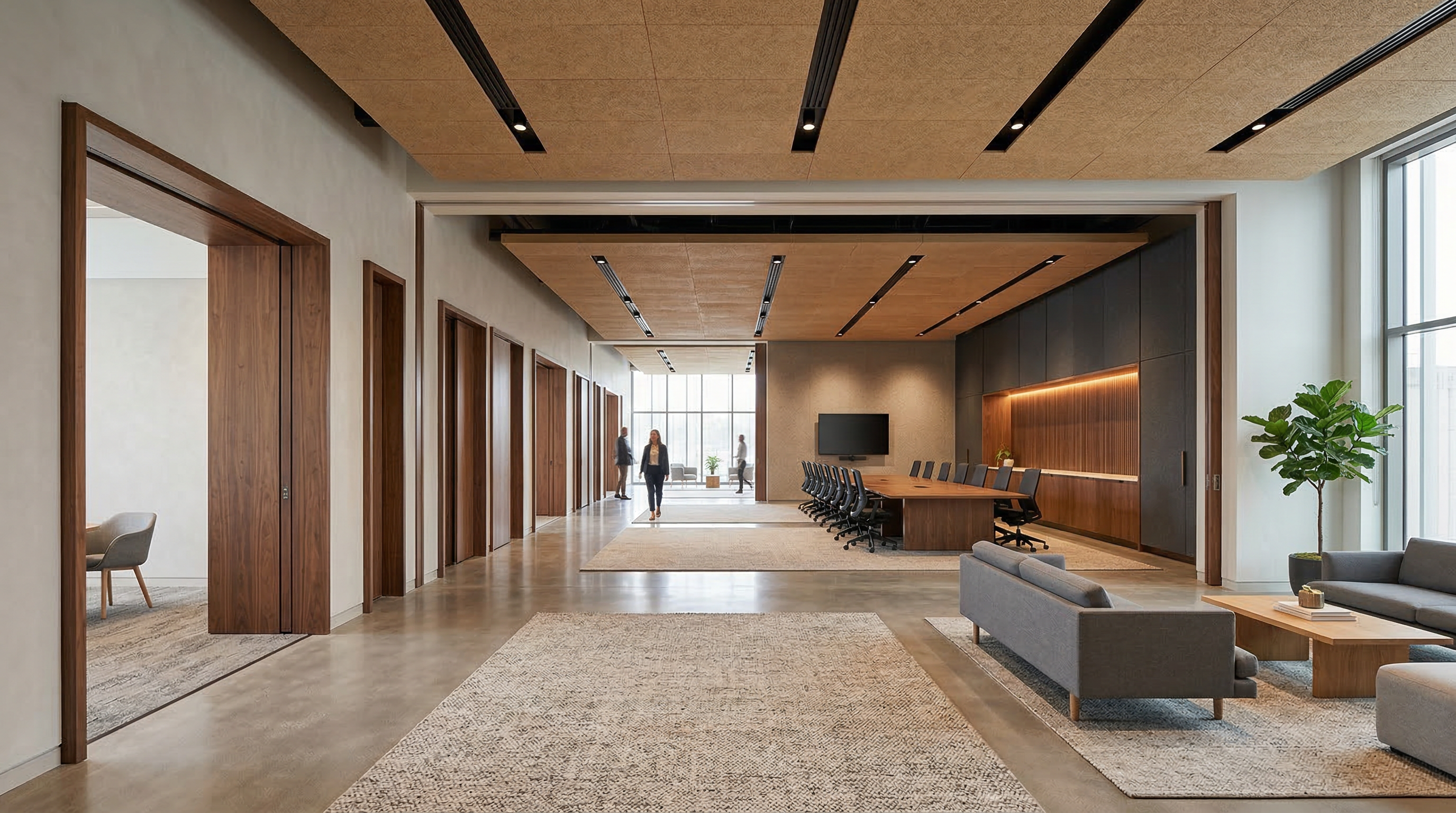

Installation Photography
The System in Situ
Technical Data
Full System Specification
Every MG400 installation is engineered to the specific dimensions and acoustic requirements of the project. The specifications below reflect the parameters of this installation.
Request a technical pack- System
- MG400 Sliding Wall & Pocket Door
- Panel Height
- Up to 3,500 mm
- Acoustic Rating
- Rw up to 43 dB
- Finish
- Classic Veneer (multiple species)
- Configuration
- Pocket Door — fully concealed when open
- Operation
- Top-hung, single or bi-parting
- Seals
- Automatic drop seals, perimeter gaskets
- Accreditations
- FIS Accredited · CHAS · Constructionline
Accreditations
Explore the Range
Other Systems in the MG Series
MG100
Movable Acoustic Wall
Full-height operable wall with Rw up to 59 dB. The benchmark for acoustic separation.
Learn moreMG200
Sliding Folding Partitions
Hinged folding partition system for wide openings. Stacks neatly to one or both sides.
Learn moreMG500
Flush Glazed Sliding Folding
Frameless glazed folding partition with acoustic performance and visual openness.
Learn moreReady to Specify?
Bring the MG400 to Your Project
Whether you're an architect specifying for a hotel, a contractor pricing a fit-out, or a client with a specific vision — our team will guide you from concept to completed installation.
